Hot Temperature Juice Filling Capping Labeling Machine With Return
System
https://youtu.be/zKy6Awtd9D4
General information
| Machine type | Monoblock rinsing - filling - capping in one machine |
| Filling liquid | Aqua water & Fresh juice & Rice wine |
| Juice type | Concentrate juice |
| Capacity | 0 - 10000BPH / Customized basing on the requirement |
| Filling range | 330ml -1500ml - 2000ml |
| Bottle type | Plastic bottles which can bear hot temperature |
| Cap type | Plastic screw caps |
| Option function | 1, Central lubrication system 2, Cap washing tunnel 3, Air purifier |
Description
Juice hot filling machine is to fill juice into plastic bottles in
high temperature. The bottle should be bear the hot temperature;
The system should keep the temperature while juice flowing through
the filling machine. Finally, the whole sysytem should have the CIP
cleaning connection to make sure the hygiene.
The complete juice production line include:
Juice processing system UHT sterilizing
V ^ V
Air conveyor > Monoblock filling machine (including the
recycling system) > Light Checker > Bottle inverse machine
> Pasteurizer tunnel > Labeling machine > Date printer
> Final package machine
Technical specification
| Model | RCGF 24-24-8 |
| Capacity | 10000 BPH for 500ml bottle |
| Suitable bottle | PET round or square |
| Filling liquid | Fresh juice without pulp & Aqua water & rice wine |
| Filling temperature | 85-90 degrees Celsius |
| Bottle diameter | 50-115 mm |
| Bottle height | 160-320 mm |
| Washing head | 24 |
| Filling head | 24 |
| Capping head | 8 |
| Air consumption | 0.5CBM / min |
| Air pressure | 6-8 bar |
| Total power | 4.4 kw |
Features
| Machine structure |
There a return system along with the juice filling machine; once
the juice temperature is lower than 85 degrees Celsius, it will be
returned to UHT for sterilizing again
New type: round smooth corner, Arm controller installed on the
machine
Monoblock high speed 3 in 1 washing - filling - capping unit
|
| Material |
Juice touch parts are stainless steel 304 or 316L
Frame material is stainless steel 304, the thickness is 1.5mm
The machine table is carbon steel, we add more poles under the
table
Bushes are changed to imported brand which is free lubricate
All parts are manufactured in more precise
|
| Each unit features |
Washing Part: The bottle head gripper in SUS 304 / 316L, ensure
minimal bottle crash during washing
Filling Part: All 304/316 stainless steel contact parts & liquid
tank, fine polish, no death corner, easy to clean
Capping Part: No bottle no capping
|
| Additional function |
Install central lubrication system
Automatic lifting system for different height
|
Main products
Water treatment line, water/juice/carbonated water/beer/edible oil
filling line, beverage processing machine (Juice and carbonated
drink), CIP cleaning systems, PET bottle blow molding machines,
fresh fruit processing machines etc.
OEM/ODM for clients
Design team
We manufacture every set of equipment with 100% attentation. We
keep promise to every client using best quality of material,
advanced technology, and famous bead of accessories such as PLC,
motor, etc. In addition, if you have any questions of our machine,
please kindly to let us know.
After sales
We offer 12 months as quality guarantee, free offer wearing parts
and offer other parts at the lowest price. In quality guarantee,
the technician of buyers should operate and maintain the equipment
according to seller’s demand, debug some failures. If you could not
solve the problems, we will guide you by phone; if the problems are
still can not solve, we will arrange technician to your factory
solving the problems. The cost of technician arrangement you could
see the cost treatment method of technician.
After quality guarantee, we offer technology support and after
sales service. Offer wearing parts and other spare parts at
favorable price; after quality guarantee, the technician of buyers
should operate and maintain the equipment according to seller’s
demand, debug some failures. If you could not solve the problems,
we will guide you by phone; if the problems are still can not
solve, we will arrange technician to your factory solving the
problems.
Down load of video link
Video link
in youtube.pdf
Soicial link
Web: www.waterbottlefillingmachines.com /
https://chuen-machine.en.made-in-china.com/ Youtube:
https://www.youtube.com/channel/UCKqb8HWZeEx8OUZjEjJPlfg
Facebook: https://www.facebook.com/chuenchenmachinery/

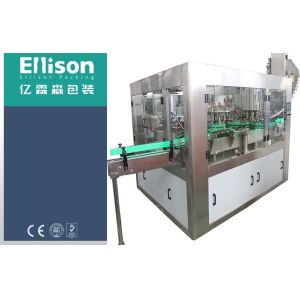

Detailed photo for ref
