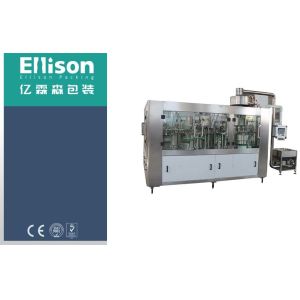

60-60-15 Soft Carbonated Drink Filling Bottling Machine For
330ml-1500ml
Video link for ref
General information
1, Water treatment system: Booster pump - Pre treatment - Reverse osmosis - Sterilizing
machine - Pure water storage tank
2, Carboanted energy drink production line: Sugar metling system -
Mixing system - Homogenizer system - CO2 mixing system
3, Beverage Filling system: Monoblock washing-filling-capping machine - Air conveyor & Belt conveyor - Light checker
4, Bottled beverage packing system: Labeling machine - Packing machine - Date printer
5, Warming tunnel
NOTE: the final list will be customize basing on:
1, the real bottles and caps
2, the production capacity per hour
3, labeling manner
4, packing manner
Description
Carbonated drink filling machine is to fill beverage with CO2 into
plastic bottles in low temperature. The bottle should be bear the
pressure a little bit; The whole system should have the CIP
cleaning connection to make sure the hygiene.
Technical specification
| Model | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-12 | DCGF60-60-15 |
Capacity 500ml | 10000 | 15000 | 20000-24000 | 25000 |
| Bottle type | PET Circular or square |
| Bottle diameter | 50-115 mm |
| Bottle height | 160-320 mm |
| Air consumption | 0.3-0.7 Mpa |
| Air pressure | 5-8bar |
| Washing medium | Aseptic water |
| Pressure of washing | >0.06Mpa <=0.2Mpa |
| Power (kw) | 6.2 | 7.8 | 10 | 13 |
| Weight (kg) | 7500 | 8500 | 9000 | 9500 |
Characters
1, Machine Material
- Juice touch parts are stainless steel 304 or 316L
- Frame material is stainless steel 304, the thickness is 1.5mm
- The machine table is carbon steel, we add more poles under the
table
- Bushes are changed to imported brand which is free lubricate
- All parts are manufactured in more precise
2, Machine structure
- There a return system along with the juice filling machine; once
the juice temperature is lower than 85 degrees Celsius, it will be
returned to UHT for sterilizing again
- Apply the circular tank to avoid the residual
- New type: round smooth corner, Arm controller installed on the
machine
- Monoblock high speed 3 in 1 washing - filling - capping unit
- The pump is adopted the Nanfang pump which is one of the best brand
in China
3, Each unit features
- Washing Part: The washing pipes can be changed to stainless steel
304
- Filling Part: there are several types of filling valves for carbonated drink; it
will be basing on the product performance to recommend the filling
valve;
- Capping Part: No bottle no capping
Sales Service
1, New plant planning
No matter whether you're a newcomer or a sectoral expert -- we have
the specialists who can provide the comprehensively can-do support
you need for planning a new facility in terms of not only actual
beverage production, but also filling, packaging. From begining of
investment capital calculating, plant strudcture designing, to
complete relative equipment supplying and final plant installation
and adjustment, we handle whole set solution to all your
satisfaction.
2, Factory layout design
Just give us your factory size, we will give you a perfect
warehouse layout.
3, Bottle/Label design
If you are new, if you do not have any idea about bottle and label
design. We will help you design it till you satisfy.
FAQ
Q: This is the first time I cooperate with your factory. How can I
trust you about the machine quality?
A: Before ordering the machine, we will make the offer very clear.
For example, the material thickness, the brand etc. We can have the
video call and I will show what we have in the factory;
Also you can visit us to see the machine;
Q: If the quality doesn't meet my requirment, how can you solve
this problem?
A: Before ordering the machine, we will negotiate the machine
inspection standard. Then start production; If you are not
satisfied with the quality, show us, we will re-do it before
shipping;
Q: Can I run the machines in your factory if I buy the complete
line in your factory?
A: Sure, why not. We will have the line connected and tested in our
factory before shipping even you didn't mention; We will make it
working before arriving at your factory;
Q: How can I get the machine?
A: Our company have the export license, so we can help to ship the
machine to discharge port that you are available.
Q: How can I install the machine and commissioning? Do you have the
technician to my factory?
A: We have the technician available to your factory for machine
installation and commissioning; BUT client should be responsible
for the round-way flight tickets, technicians' daily salary, local
transportation, local hotel and eating.

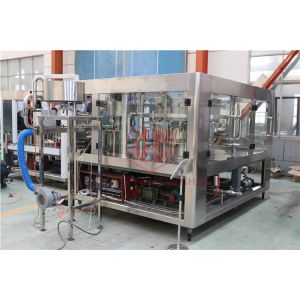

Detailed photo for ref
