Volumetric Tomato Sauce Filling Machine / Glass Bottle Washing Filling Capping Machine

Description

The equipment is integrated with filling and capping functions in one unit. It is suitable for precise piston filling for condense liquid such as ketchup, mayonnaise, oil etc. And it will be suitable for production of non-soda drink of mineral-pure water and juice, milk, etc.

Material

Working principle

Bottles are delivered to the filler still by body holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

The full bottle is transferred to the capping part through hold body transition poking wheel. The stop screwing knife holds the bottle neck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel.

Electric configurations

Filling part

1. All liquid touching parts are made of SUS304

2. The piston filling valve is introduced the advanced foreign design with precise filling lever, no hygiene corner pocket, a few sealing parts, and precise volume control. The whole valve is made of 304 stainless steel. The sauce will be stirred during filling to make sure average.

3. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

4. The liquid supply adopts the piston to control the liquid automatically.

5. The motivation of the filler is derived from the driven system in the framework and passed by gear.

6. The filling volume will be adjusted easily by changing digit PLC system;

Capping part

This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

Characteristic of the screwing capper as follows:

1. Automatic cap loading on bottle neck;
2. Claw type capping head will hold bottle top closely;
3. 4 capping knifes working together will provide balance capping lines;

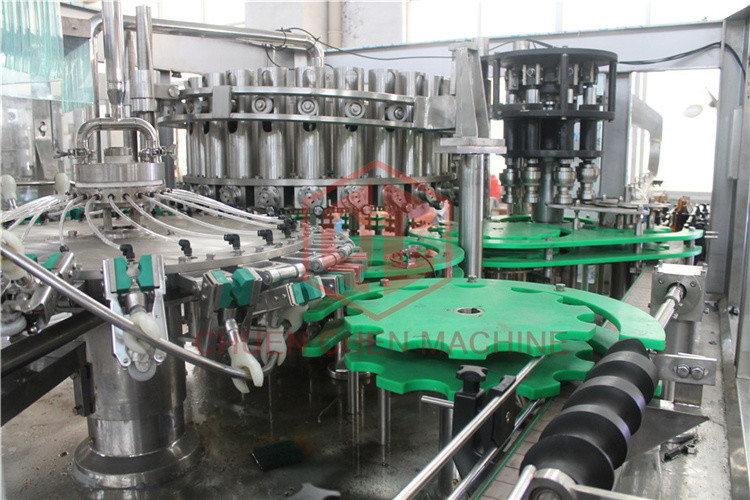

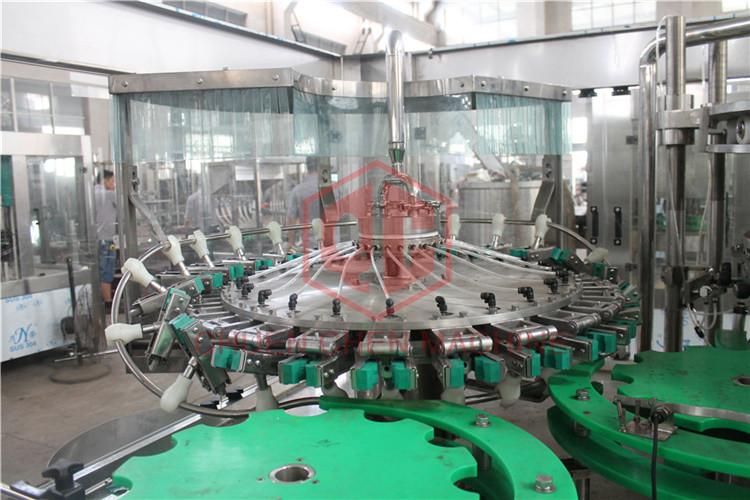

Detailed photo for ref

Suzhou Ellison Packing Machinery Co.,Ltd. which was originally set up as an factory in 2000. The company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries and over cross domestic.
